COLORS & MATERIALS

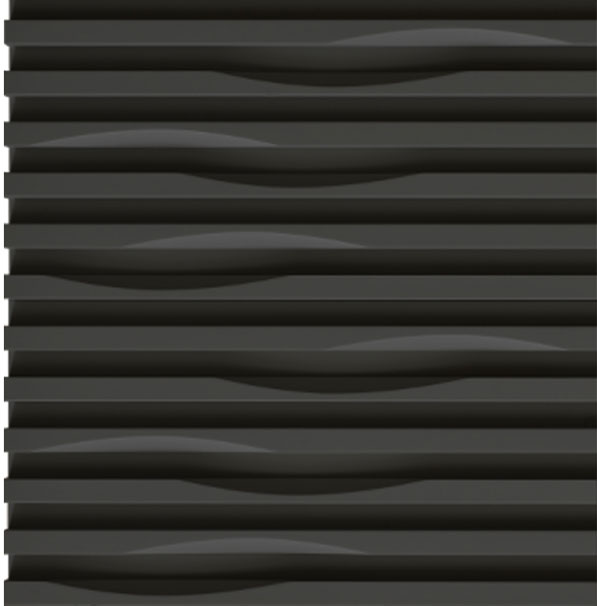

SONA creates timeless interiors with its linear design that flows with subtle movements. SONA, despite its gentle touch, makes sure all eyes are on it. SONA’s horizontal and vertical application creates different rhythms, tells different stories. While it has a strong character on its own it combines beautifully with other panels.
PANEL DIMENSIONS
INSTALLATION
60x120 cm panels come with pre-inserted nuts at the corners on the back of the panel, ready to fix the Z-shaped profiles. Z-shaped profiles for 60x120 cm panels comes separately. Using these pre-inserted nuts, Z-shaped profiles are fixed according to the direction of the panel to be hung.
The locations of the Z-shaped profiles are the same for all 60 x 120 panels so that if you change the panel with another 60 x 120 cm Mikodam panel you will not have to change the position of the U-shaped profile on the wall. You can also change the direction of the panels without changiing the position of the U-shaped profiles.
While hanging the panels, both lower and upper z profiles should be used for the panel at the bottom. For the panels above it only the z profiles on the top are used.
The locations of the Z-shaped profiles are the same for all 60 x 120 panels so that if you change the panel with another 60 x 120 cm Mikodam panel you will not have to change the position of the U-shaped profile on the wall. You can also change the direction of the panels without changiing the position of the U-shaped profiles.
While hanging the panels, both lower and upper z profiles should be used for the panel at the bottom. For the panels above it only the z profiles on the top are used.
Given below is the method of installation of our panels hanging on the ceiling by using wire ropes. This method is preferred when the panels need to be hung at a distance from the ceiling instead of being directly mounted to the ceiling.
Various combinations can be achieved with different color and material alternatives such as natural wood veneer (oak, walnut, teak), lacquer, fabric. Through rotations different patterns can be created. This product can be combined with other Mikodam acoustic wall panel lines.
SONA COMBINATIONS 01
SONA COMBINATIONS 02
SONA COMBINATIONS 03
SONA COMBINATIONS 04
SONA COMBINATIONS 05
SONA COMBINATIONS 06

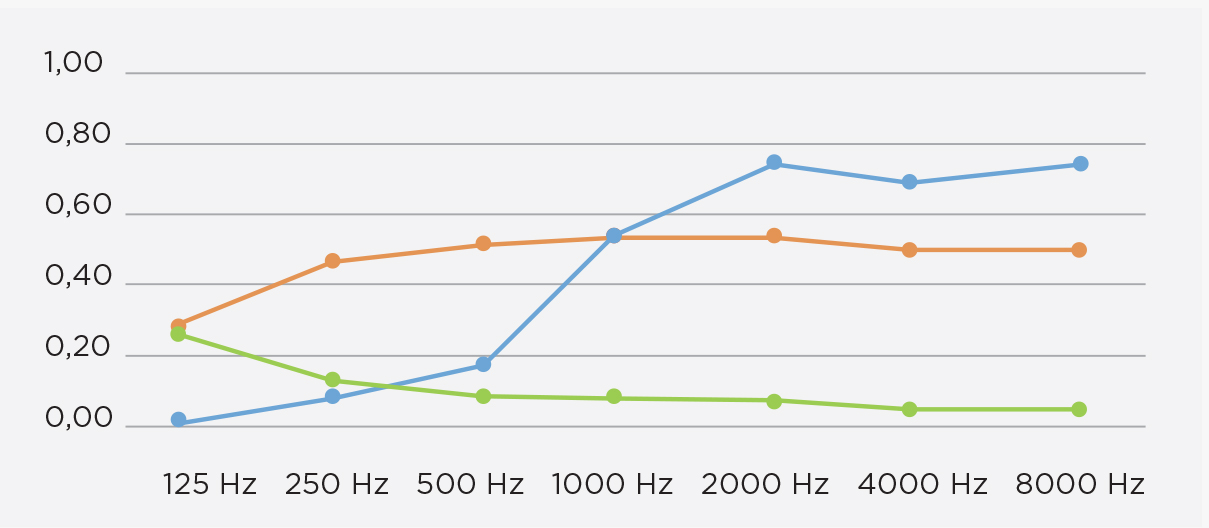

ACOUSTIC PERFORMANCE
The geometry, the mass and the material of the surfaces provides effective sound scattering. The use of this product on walls and ceilings will allow even distribution of sound within the room where it is applied and will prevent acoustical defects causing disturbance due to harsh sound reflections, acoustical glare, echo or flutter echo.
SONA Module provides different absorption characteristics for its alternative types. T2 can be used where an extra high absorption is necessary. Felt is an even more effective sound absorbent than the standard fabric options. T3 can be used where high absorption is necessary. The panel in this form is effective for controlling reverberation and echo formation inside rooms designed for speech related activities due to higher absorption performance at mid-to-high frequencies. Having repetitive depths of its linear elements, all configurations can function as effective sound scatterers around 6300 Hz octave band range.
CORNER IMPLEMENTATION
